Definitive Technologyspeakers

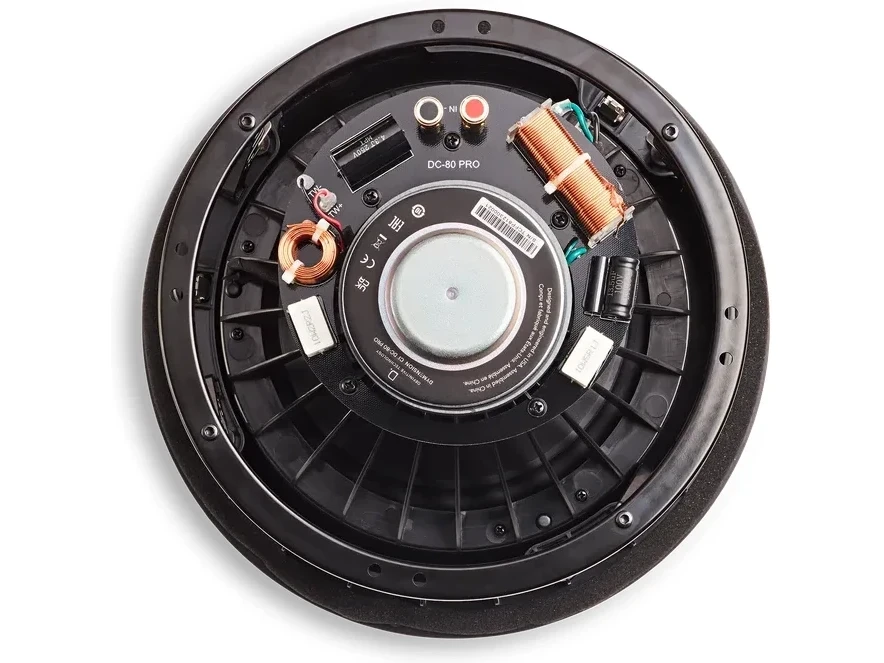

Definitive Technology DC-80 Pro
Equipment Sales & Professional Installation
MPN: DC-80 Pro
- 8.0" Mineral-Filled Woofer
- 1" Pivoting Aluminum Oxide Dome Tweeter
- Toolless Installation
- Flush, Border-Free Design
- IP55-Rated
Specifications
Specifications
| Product Dimensions (Diameter) | 11.80 in (299.8 mm) |
|---|---|
| Cut- Out Dimensions (Diameter) | 10.57 in (268.6 mm) |
| Mounting Depth | 4.97 in (126.4 mm) |
| Weight | 5.47 lbs (2.48 kg) |
| Color | White Paintable Grille |
| Grille material | Micro-Perforated Magnetic Grille |
| Tweeter | 1 in Pivoting Aluminum Oxide Dome Tweeter |
| Midrange/Midbass | 8 in Mineral Filled Poly |
| Frequency response | 26 Hz-30 kHz (-10dB) 42 Hz-25 kHz (-3dB) |
| Nominal impedance | 6 ohm |
| Sensitivity | 88dB (2.83V/1m) |
| Recommended Amplifier Power | 20-120W |
| IP Rating (Ingress Protection) | IP55 |
| Warranty | 5 years |
| Included accessories | Grille, Literature Pack (QSG/Registration Card/Warranty), Hole Cutting Guide |
