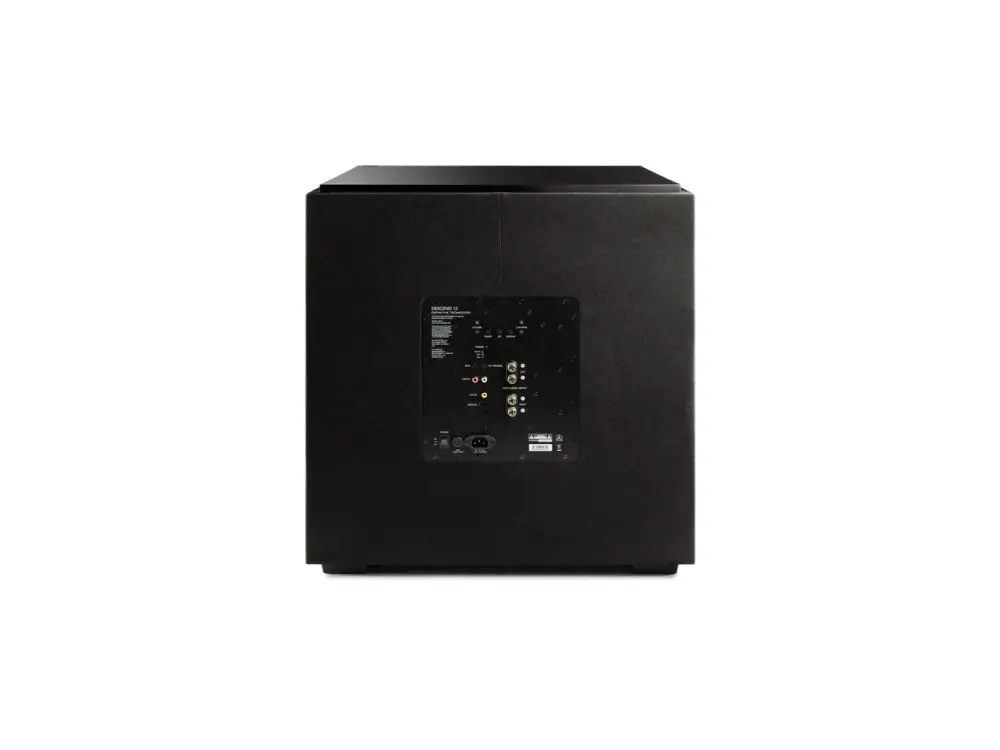

Definitive Technology DN12
Equipment Sales & Professional Installation
MPN: DN12
- 12" Long-Throw Woofer
- Dual 12" Passive Radiators 3XR Configuration
- As Low As 25Hz (+/- 3 dB)
- Class H Digital Amplifier
- Back Panel and Remote Control
Specifications
Description Overall
| Colors | Midnight Black |
|---|---|
| Transducers | 12" Long-Throw Woofer |
| Passive radiators | Dual 12" 3XR Configuration |
| Bass type | Bass Radiator |
| Feet | Permanently Installed Feet with Rubber Pad (no leveling) |
| Dimensions | 18.72" x 18.04" x 19.09" 475.5 x 458.2 x 484.8mm |
| Amplifier type | Class H |
| Frequency response (-/+ 3dB) | 25 Hz 150 Hz |
| Low-Pass crossover freq | 40 Hz 150 Hz |
| Phase adjustment | -135 to 180 degrees (In 45 degree increments) |
| Power supply | Internal IEC 3 prong Jack 120V/240V switch |
| Europe (<.5W Compliance) | Yes |
| LFE | Single RCA |
| Speaker | Left/Right 5-Way Binding Posts |
| Main power | On/Off |
| Volume control | +/-/ Mute Buttons |
| Low pass control | +/- Buttons |
| Phase control | Toggle Button |
| Front LED Display | Fully functional; disappearing |
| Remote Control | Included IR Remote |
| Warranty | Drivers 5 years. Amplifier 3 years |
