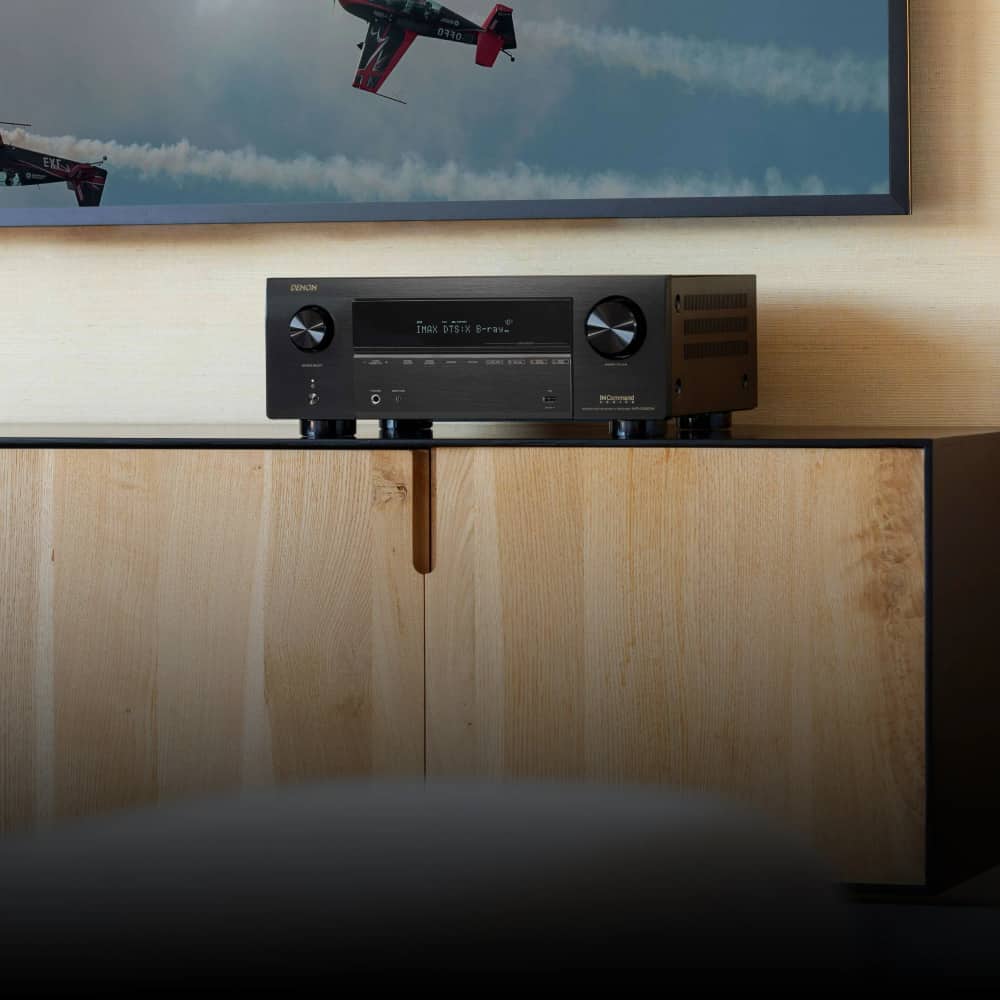

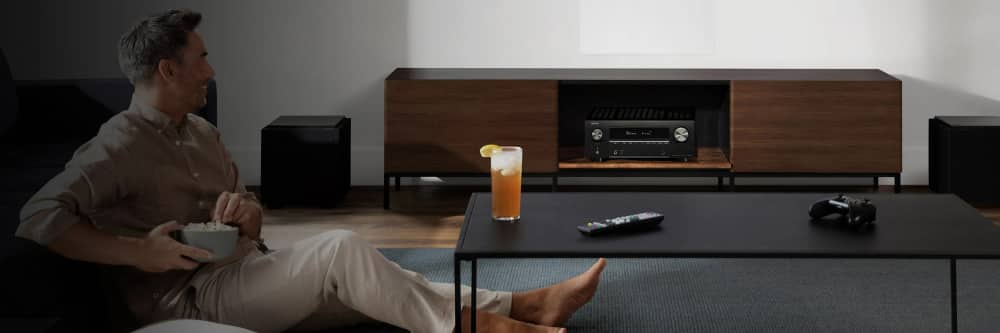

AVR-X3800H
With nine channels of amplification, up to four independent subwoofers, Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X3800H envelops larger living spaces in theater-quality sound. Enjoy amazing 8K video quality and with HEOS, wirelessly stream and share online music between rooms.
MPN: 300609-01-00-101
Request a quoteTalk to the team that installs it in Cypress, TX. System design, screen matching and calibration included in the quote.
How we specify in Cypress
Cypress neighborhoods such as Bridgeland, Towne Lake and Fairfield mix pre-wired rooms with bare walls. Some rooms already have conduit and a media box, others need a fish run from the attic. Either way the plan starts with a wall by wall survey. For the AVR-X3800H specifically, we confirm the fit against your room in Cypress, TX before quoting the install.
Service area: Cypress, Bridgeland, Towne Lake, Fairfield, Coles Crossing, Copperfield, Jersey Village, Hockley, Waller.
Specifications
Multichannel Surround
| DTS HD Master, DTS:X, DTS:X Pro | Yes, Yes, No |
|---|---|
| DTS Neo:X, DTS Neural:X | No, Yes |
| DTS Virtual:X | Yes |
| IMAX Enhanced | Yes |
| Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music | Yes, Yes, Yes, Yes |
| Dolby ProLogic Ilz, Dolby Surround | No, Yes |
| Auro 3D | Yes |
| 360 Reality Audio / MPEG H | Yes, Yes |
| Multichannel Stereo | Yes |
| Max. Number of Processing (Pre-Amp) Channels | 11.4 |
Sound Enhancements
| Discrete Power Amplifier | Yes |
|---|---|
| Pure Direct | Yes |
| Audyssey | MultEQ XT32 |
| Audyssey Dynamic EQ, Dynamic Volume | Yes, Yes |
| Audyssey LFC | Yes |
| Dirac Live Upgradability | Yes |
| Compressed Audio Restorer | Yes |
Network
| Media Server | Yes |
|---|---|
| HEOS Wireless Multi-Room Technology | Yes |
| Alexa / Google Voice Assistant / Apple HomePod | Yes, Yes, Yes |
| Lossy Formats: MP3, WMA, AAC | Yes, Yes, Yes |
| Lossless Formats: FLAC, ALAC, WAV | Yes, Yes, Yes |
| Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) | Yes, Yes, Yes |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| AirPlay 2 | Yes |
| TuneIn | Yes |
| Spotify Connect | Yes |
| Pandora | Yes |
| SiriusXM | Yes |
| Roon Tested | Yes |
| HEOS App Control | Yes |
| Compatible with Remote APP for Smart Phones | Denon 2016 AVR Remote |
| Ethernet Ports | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
HDMI
| HDMI Inputs: Back, Front | 6, No |
|---|---|
| HDCP2.3 support | Yes |
| HDMI Outputs: Main, Zone | 2, 1 |
| HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB | Yes, Yes |
| HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR | Yes , Yes, Yes, Yes, Yes |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| Variable Refresh Rate, Quick Flame Transport, Quick Media Switching | Yes, Yes, No |
| 3D Signal Pass-through | Yes |
| 8K Signal Pass-Through, Scaling, GUI Overlay | Yes, Yes, Yes |
| DSD Audio Capability | Yes |
| Audio Return Channel (ARC), Enhanced ARC | Yes, Yes |
| Auto LipSync | Yes |
Multi-room CI
| Multi-Room Zones | 2 |
|---|---|
| Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog | Yes (2ch), Yes (2ch), Yes, Yes |
| Zone Audio Output: Speaker, Pre-Out | Yes, Yes |
| Zone HDMI Output from HDMI Source | Yes |
| IP Control, RS232 Control, Web Control, App Control | Yes, Yes /Yes, Yes |
| Remote In / Out | Yes, Yes |
| DC Trigger Output | 1 |
| HDMI Diagnostics | Yes |
Others
| Auto Speaker Setup by Microphone | Audyssey MultEQ XT32 Dirac Live (upgrade) |
|---|---|
| Front Display | 1-Line FLD |
| GUI Languages | 3 |
| Setup Assistent | Yes |
| Quick Select Plus, Quick Select | Yes, No |
| Variable Crossover | Yes |
| Optimized Bass Redirection | Yes |
| Bass Sync | Yes |
| ECO Mode | Yes |
| Auto Power Off | Yes |
| Sleep Timer | Yes |
Inputs/Outputs
| HDMI In, Out | 6, 3 |
|---|---|
| Multi-Room Video Out: Video, HDMI | No, Yes |
| Analog In, Out | 5, No |
| Phono (MM) In | Yes |
| Digital In: Optical, Coaxial | 2, 2 |
| Multi-Room Out: Analog, Digital | 1, No |
| Multichannel Pre-out | Yes (11.4) |
| Subwoofer Out | 4 (independent) |
| Speaker Terminal: Gold-Plated Screw, Regular Screw | No, Yes |
| Number of Speaker Terminals | 11 |
| Speaker A / B | Assignable |
| Bi-amp Drive | Assignable |
| Multi-Room Speaker Terminal | Assignable |
| Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB | No, No, No, No, Yes |
| USB Audio, Made for iPod, Made for iPhone | Yes, No, No |
| AM/FM Tuner | Yes |
Specifications
| Number of Power Amps | 9 |
|---|---|
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | 105W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 135W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 215W |
General
| System Remote Control | RC-1253 |
|---|---|
| Pre-Programmed, Learnable, LCD Display | No, No, No |
| Power Consumption in W | 660W |
| Power Consumption No-Sound (ECO On / Off) in W | 60W/100W |
| Standby Consumption in W | 0.1 |
| CEC Standby Consumption in W | 0.5 |
| Network Standby Consumption in W | Less than 2.0 |
| Maximum Dimensions Antenna: Horizontal: (W x D x H) in Inches Antenna: Vertical: (W x D x H) in Inches W/O Antenna: (W x D x H) in Inches | 17.1 x 15.3 x 6.6 ( 17.1 x 15.3 x 9.3 ) [ 17.1 x 14.9 x 6.6 ] |
| Weight in LBS | 27.6 |
| Weight in LBS (Packaging) | 33.3 |
Features
- 9.4 channels
- 105 watts per channel
- 8K Ultra HD
- 3D Audio
- Powered by HEOS
- Dirac Live Ready
