MartinLoganspeakers
MartinLogan IC6
Equipment Sales & Professional Installation
MPN: IC6
- Solutions Meet Performance
- Titanium Dome Tweeters and Poly Cone Woofers
- Micro-Perforated Grilles

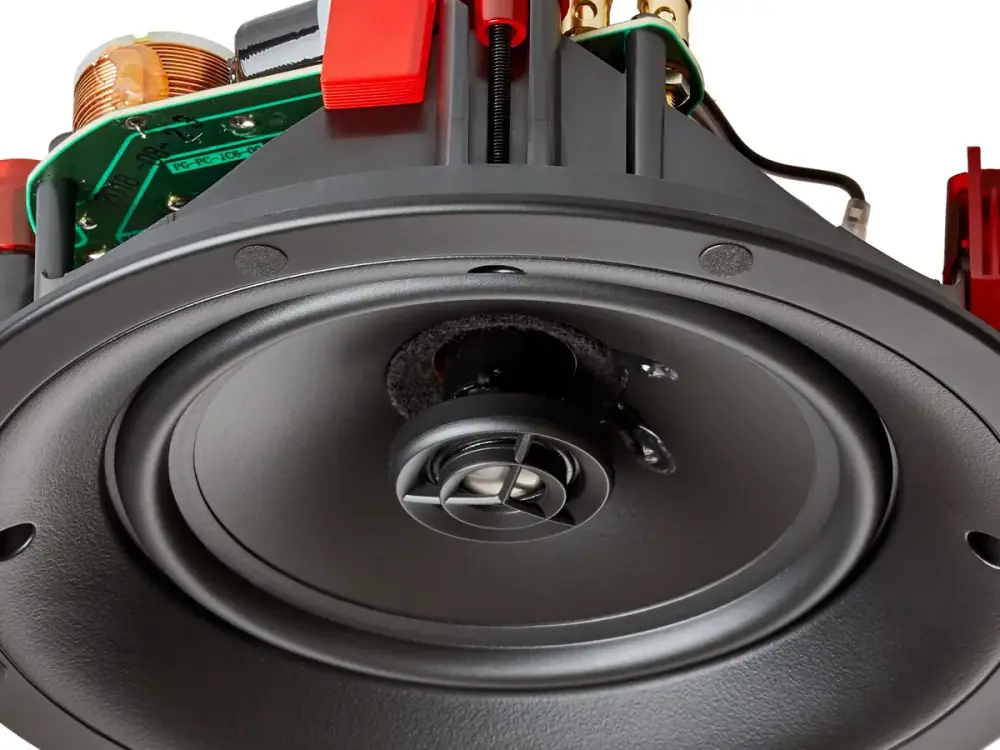

- Precision Crossovers & Spring-Loaded Binding Posts
- Robust Mounting-Lock System
Specifications
Specifications
| Frequency Response | 55-20,000 Hz |
|---|---|
| Recommended Amplifier Power | 80 Watts |
| Sensitivity | 89dB |
| Impedance | Compatible with 8 ohms |
| Crossover Frequency | 3,000 Hz |
| High Frequency Transducer | 0.75" (1.9cm) titanium dome |
| Low Frequency Transducer | 6.5" (16.5cm) mineral-filled poly cone |
| Binding Post Inputs | Push style accommodates wire up to 12AWG |
| Weight | 3.5 lbs. (1.6 kg) |
| Dimensions (overall size) | 8.7" x 3.46" (22.1 x 8.8cm) |
| Cut-Out Dimensions | 7-3/4" (19.6cm) dia. |
| Projection From Wall Surface | 0.31" (0.8cm) |
| Depth Behind Wall Surface | 3.18" (8.1cm) |
| Square Grille (sold separately) | C6 & C6-ST Square Grille |
| Pre-install Bracket (sold separately) | C6 & C6-ST Bracket |
