MartinLoganspeakers

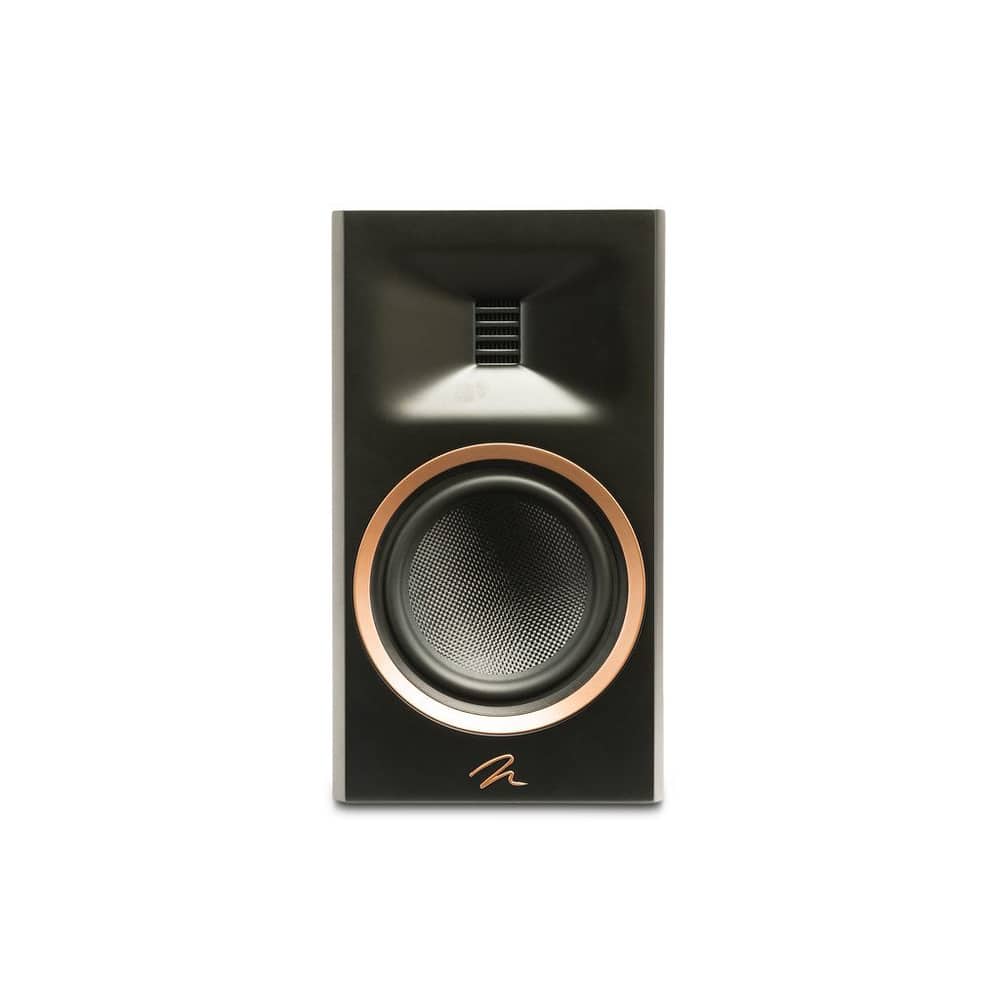

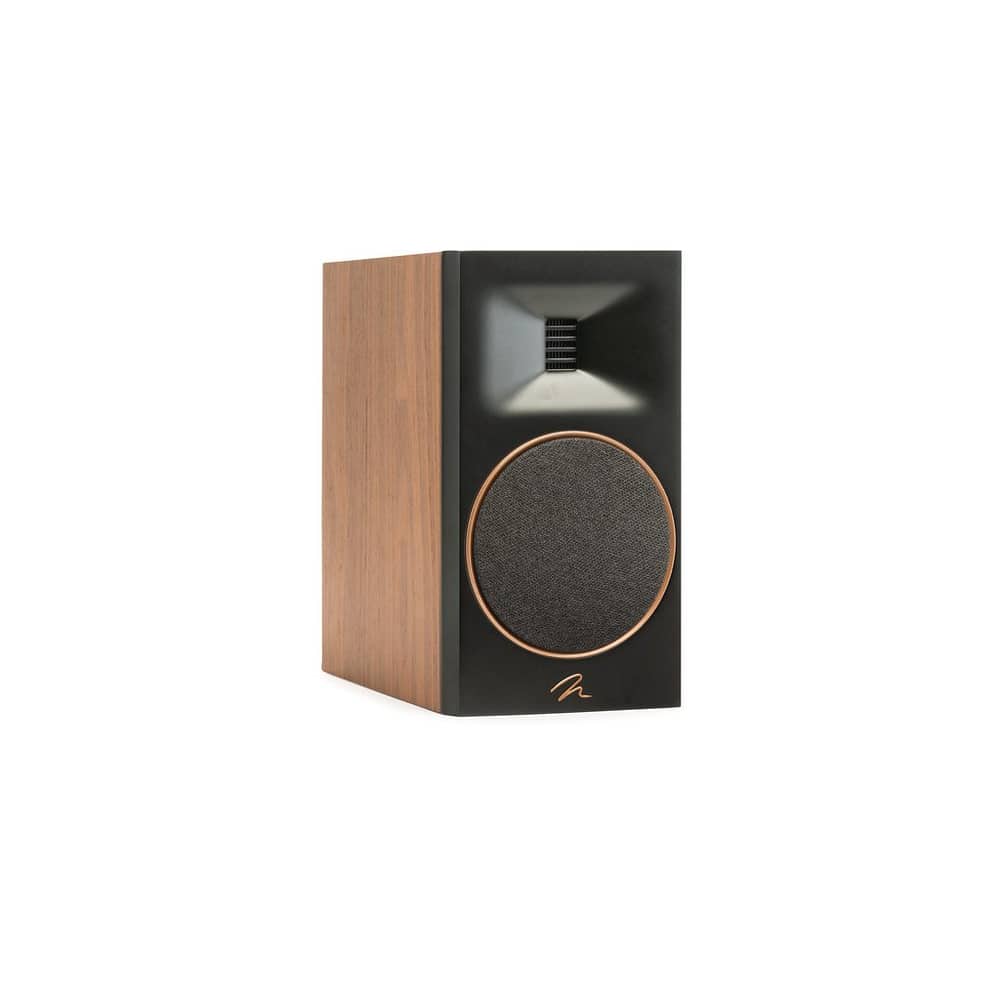

Motion B10
Distinctive Design, Elegant Execution, Beautiful Sound. Motion: Reimagined.
Request a quoteTalk to the team that installs it in Cypress, TX. System design, screen matching and calibration included in the quote.
How we specify in Cypress
Cypress neighborhoods such as Bridgeland, Towne Lake and Fairfield mix pre-wired rooms with bare walls. Some rooms already have conduit and a media box, others need a fish run from the attic. Either way the plan starts with a wall by wall survey. For the Motion B10 specifically, we confirm the fit against your room in Cypress, TX before quoting the install.
Service area: Cypress, Bridgeland, Towne Lake, Fairfield, Coles Crossing, Copperfield, Jersey Village, Hockley, Waller.
Specifications
Specifications
| Dimensions (H x W x D, with feet) | 12-1/2" x 7" x 9-3/4"; 31.8cm x 17.8cm x 24.8cm |
|---|---|
| Frequency Response | 56 Hz - 25 kHz; ± 3 dB |
| Tweeter Dispersion (horizontal x vertical) | 90° x 90° |
| Recommended Amplifier Power | 20 - 200 watts |
| Sensitivity | 92 dB |
| Impedance | 5 ohms |
| Crossover Frequency | 2,370 Hz (2-way) |
| High Frequency Driver | 1" x 1.4" (2.6 x 3.6cm) Gen2 Obsidian Folded Motion Tweeter with 9.2 in2 (59.4 cm2) diaphragm |
| Mid-Frequency Drivers | 5.5" (14cm) Woven Fiberglass cone with cast polymer basket. Non- resonant asymmetrical chamber format. Unibody cone construction. |
| Cabinet | Rear Ported |
| Binding Post Inputs | Custom 5-way binding posts |
| Weight | 14.5lbs / 6.6kg |

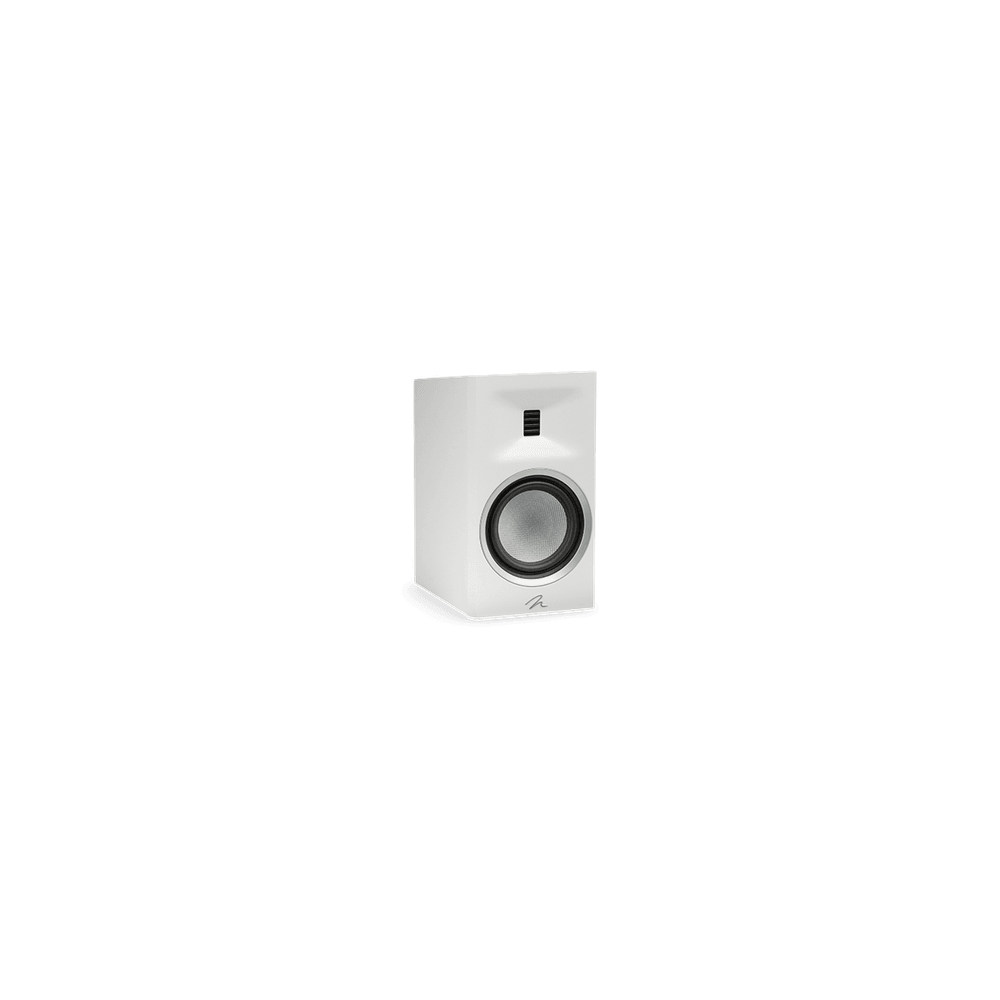

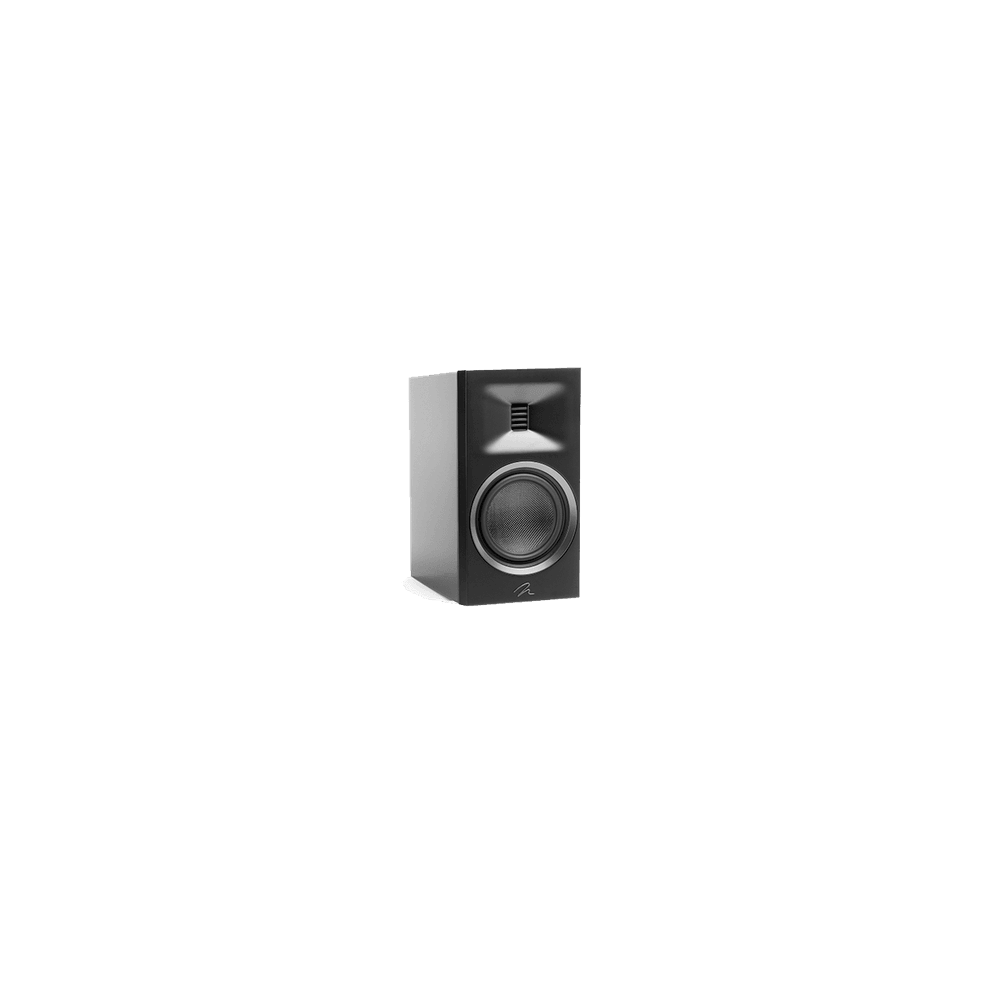

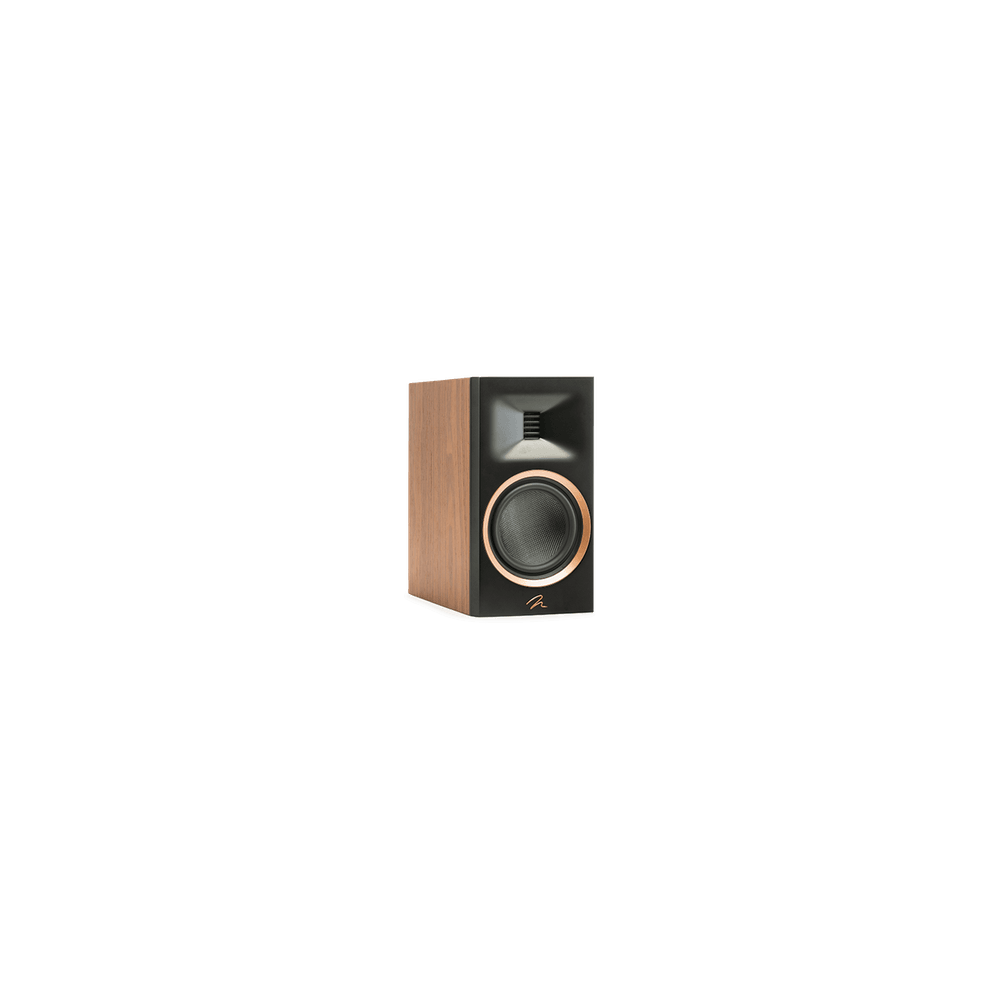

| Finish | Gloss Black, Walnut, and Satin White |
Features
- Motion: Reimagined
- Legendary MartinLogan Sound
- Gen2 Obsidian Folded Motion Tweeter
- Folded Motion Waveguide
- Woven-Fiberglass Midrange

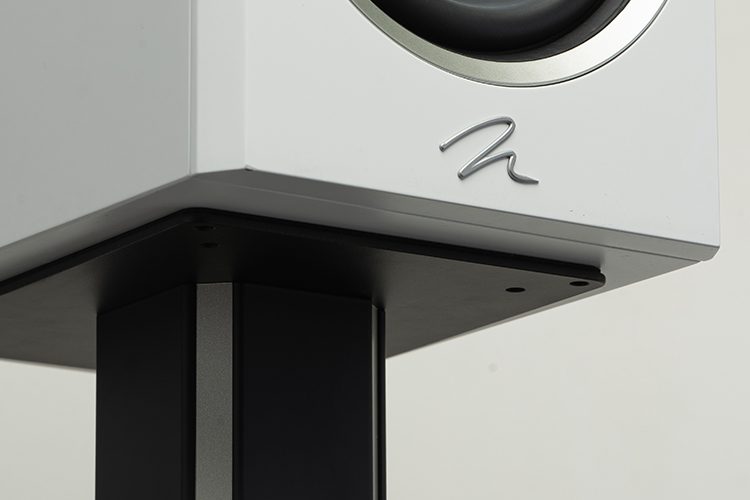

- Stand25
Documents
Want this model specified for your room?
Send us the room size, seating distance and what you watch. We will confirm the right model and screen for Cypress, TX, then quote the install.
