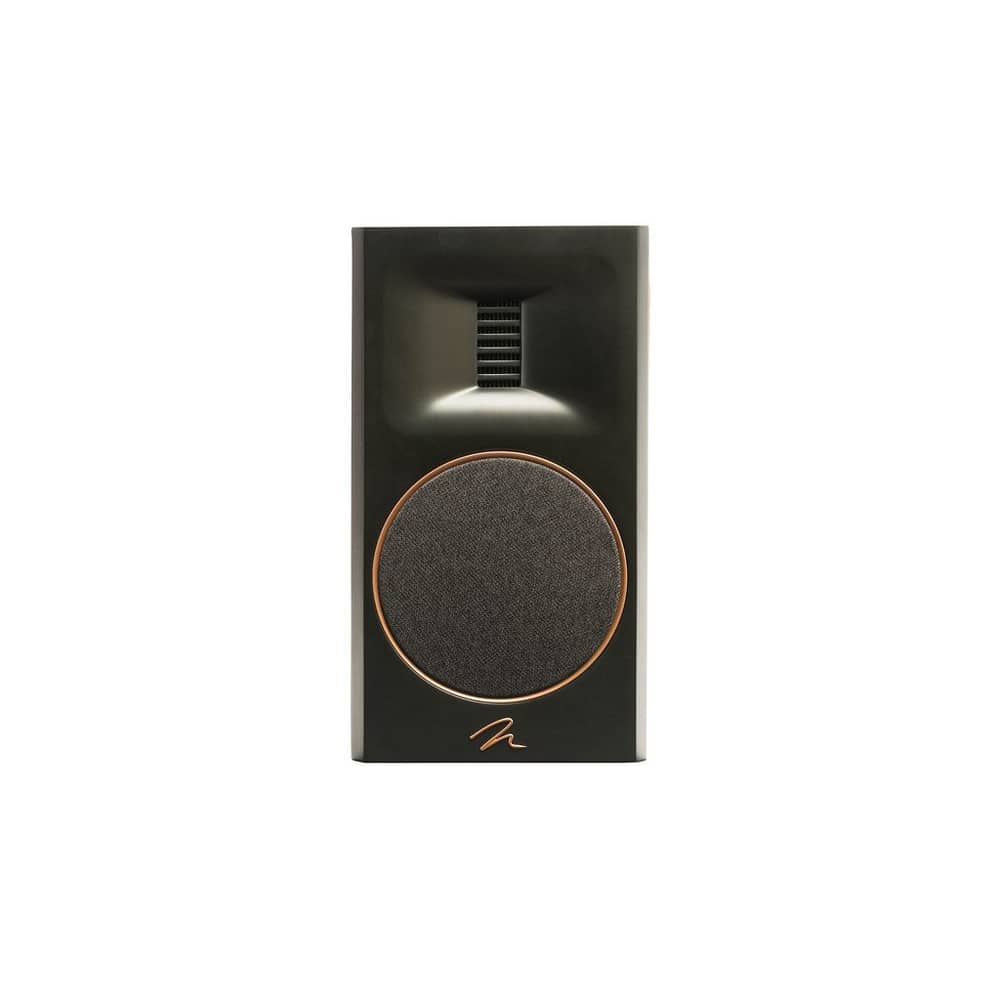

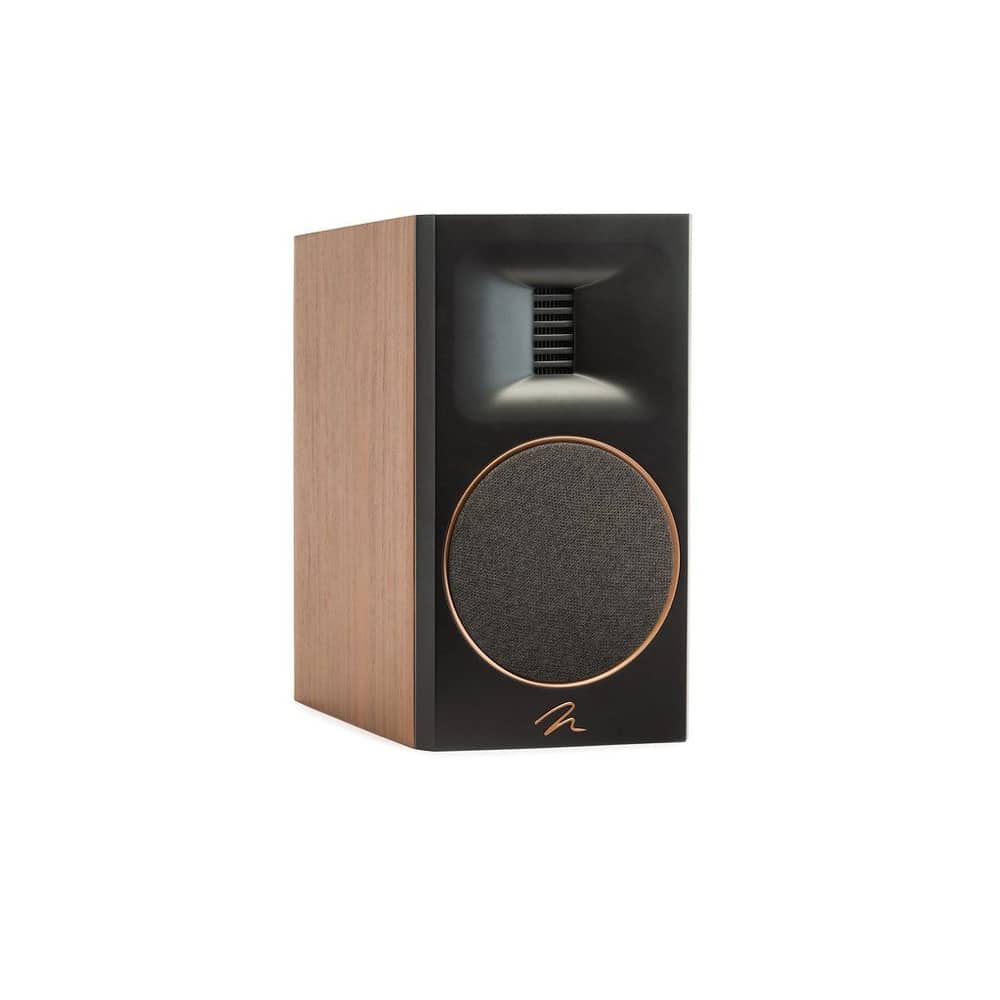

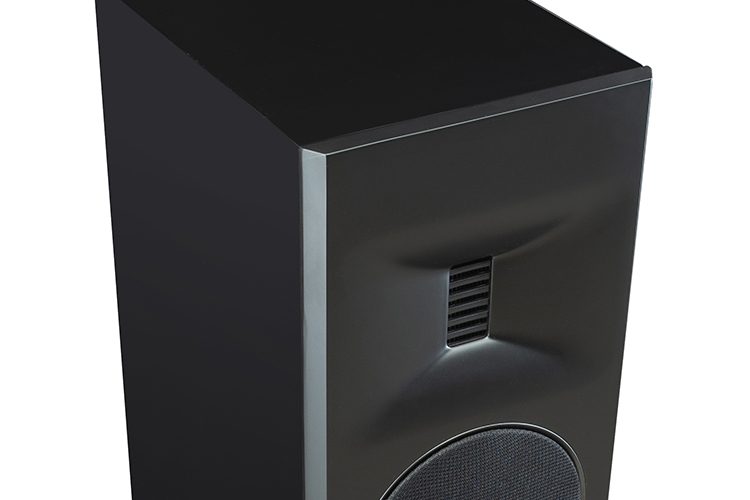

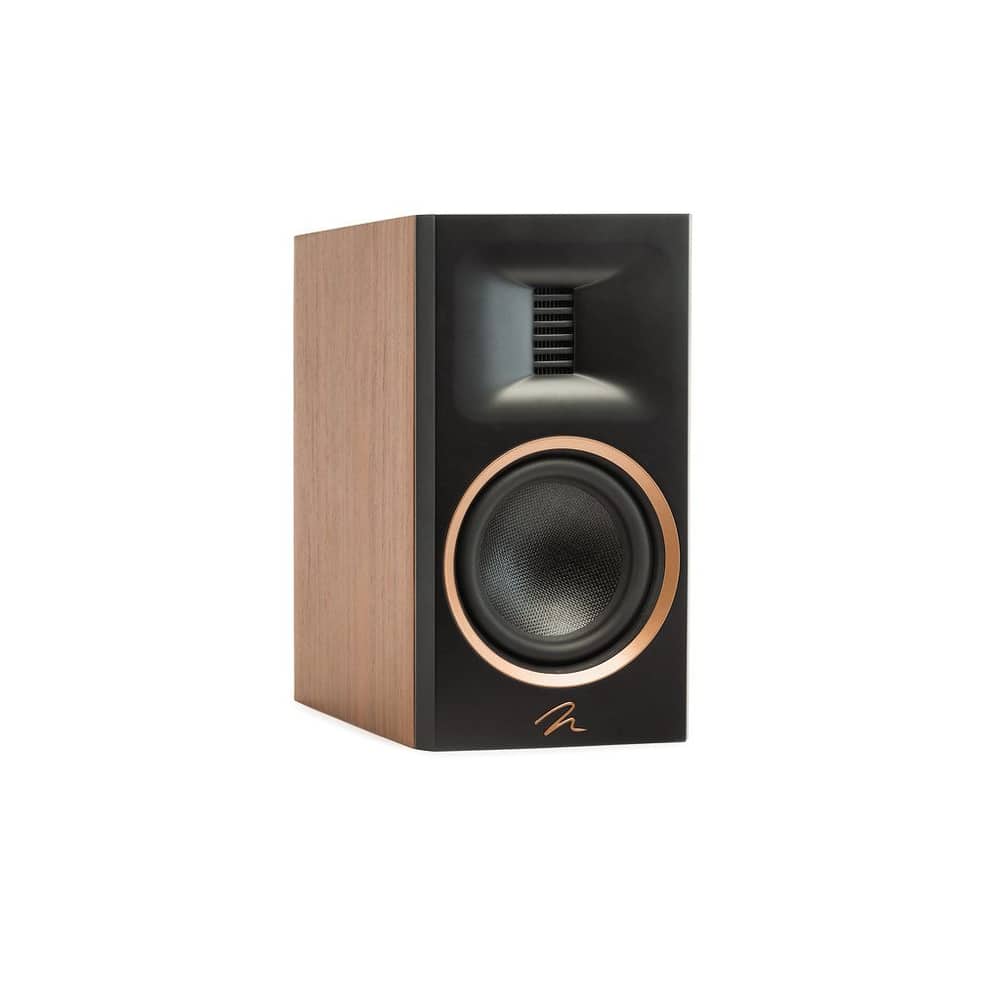

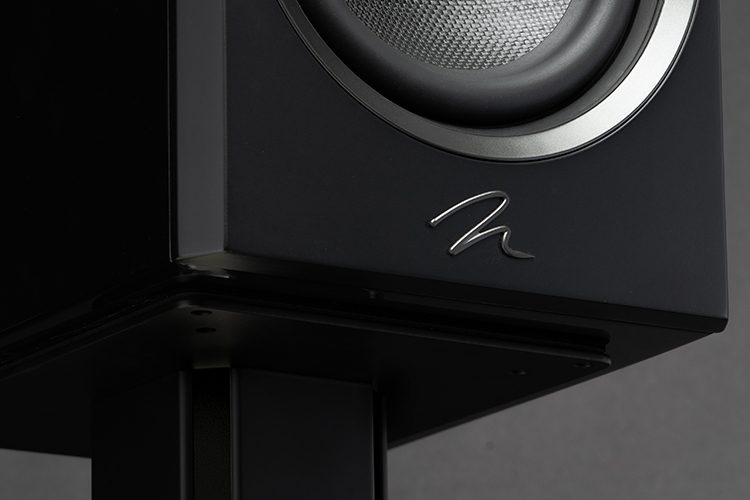

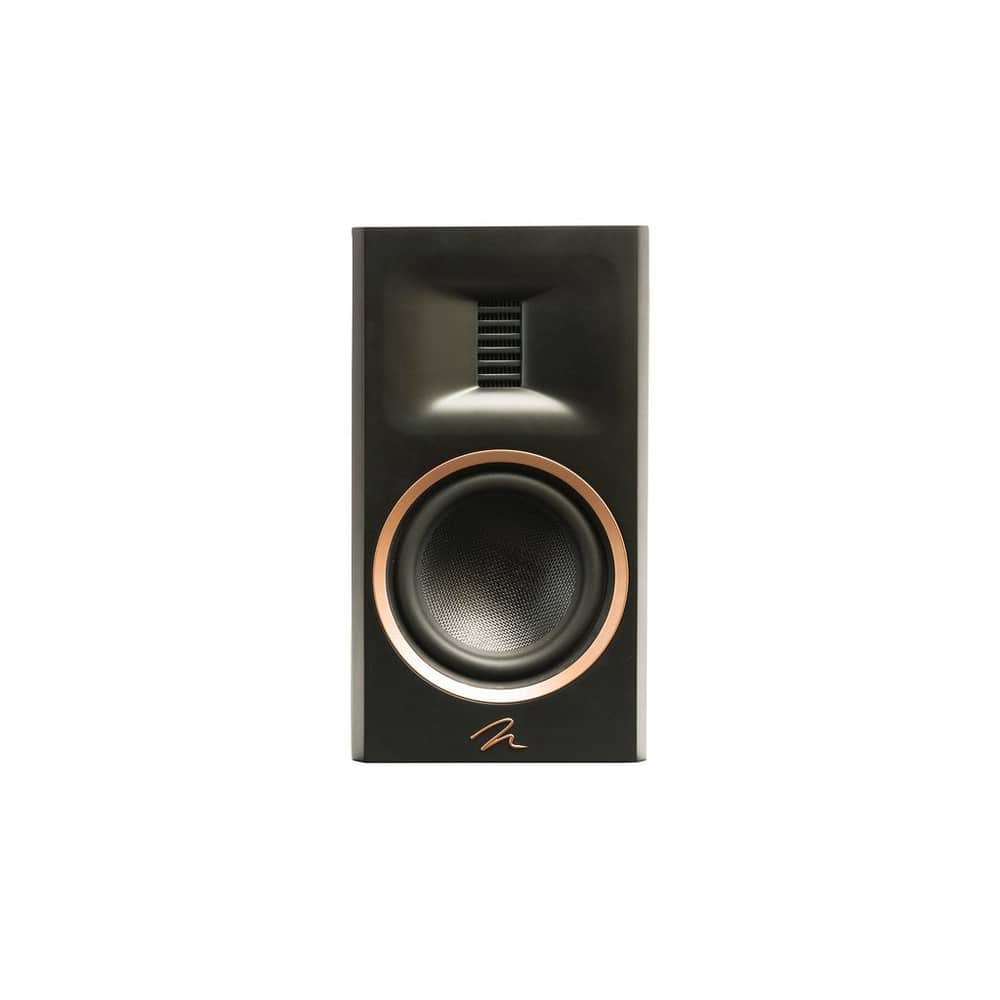

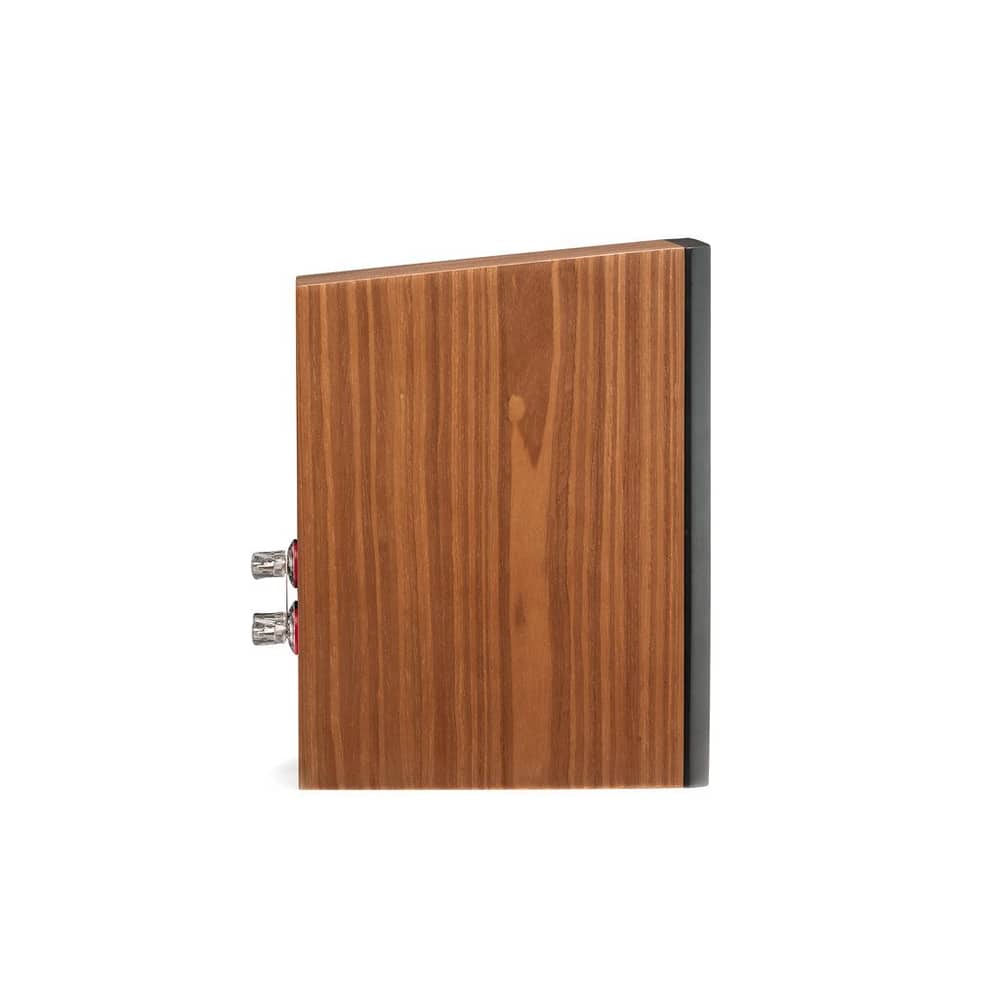

Motion XT B100
Distinctive Design, Elegant Execution, Beautiful Sound. Motion: Reimagined.
Request a quoteTalk to the team that installs it in Cypress, TX. System design, screen matching and calibration included in the quote.
How we specify in Cypress
Cypress neighborhoods such as Bridgeland, Towne Lake and Fairfield mix pre-wired rooms with bare walls. Some rooms already have conduit and a media box, others need a fish run from the attic. Either way the plan starts with a wall by wall survey. For the Motion XT B100 specifically, we confirm the fit against your room in Cypress, TX before quoting the install.
Service area: Cypress, Bridgeland, Towne Lake, Fairfield, Coles Crossing, Copperfield, Jersey Village, Hockley, Waller.
Specifications
Specifications
| Dimensions (H x W x D, with feet) | 14-1/2" x 8" x 12-1/2"; 36.8cm x 20.3cm x 31.8cm |
|---|---|
| Frequency Response | 45 Hz - 25 kHz; ± 3 dB |
| Tweeter Dispersion (horizontal x vertical) | 90° x 45° |
| Recommended Amplifier Power | 20 - 250 watts |
| Sensitivity | 93 dB |
| Impedance | 4 ohms |
| Crossover Frequency | 2,600 Hz (2-way) |
| High Frequency Driver | 1.25" x 2.4" (3.2 x 6.1cm) Gen2 Obsidian Folded Motion XT Tweeter with 12.4 in2 (79.8 cm2) diaphragm |
| Mid-Frequency Drivers | 6.5" (16.5cm) Nomex Reinforced Kevlar cone with cast aluminum basket. Non-resonant asymmetrical chamber format. Unibody cone construction. |
| Cabinet | Rear Ported |
| Binding Post Inputs | Custom bi-amp/bi-wire capable 5-way binding posts |
| Weight | 20.5lbs / 9.3kg |

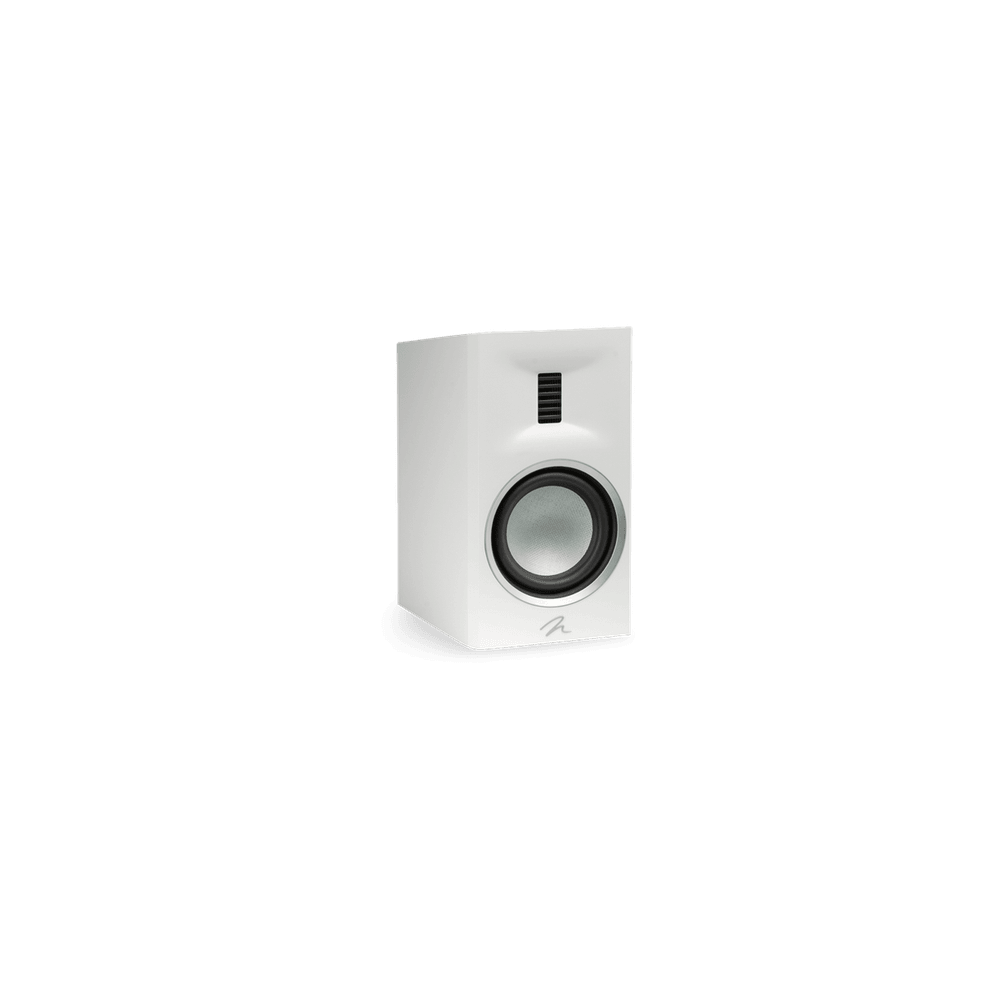

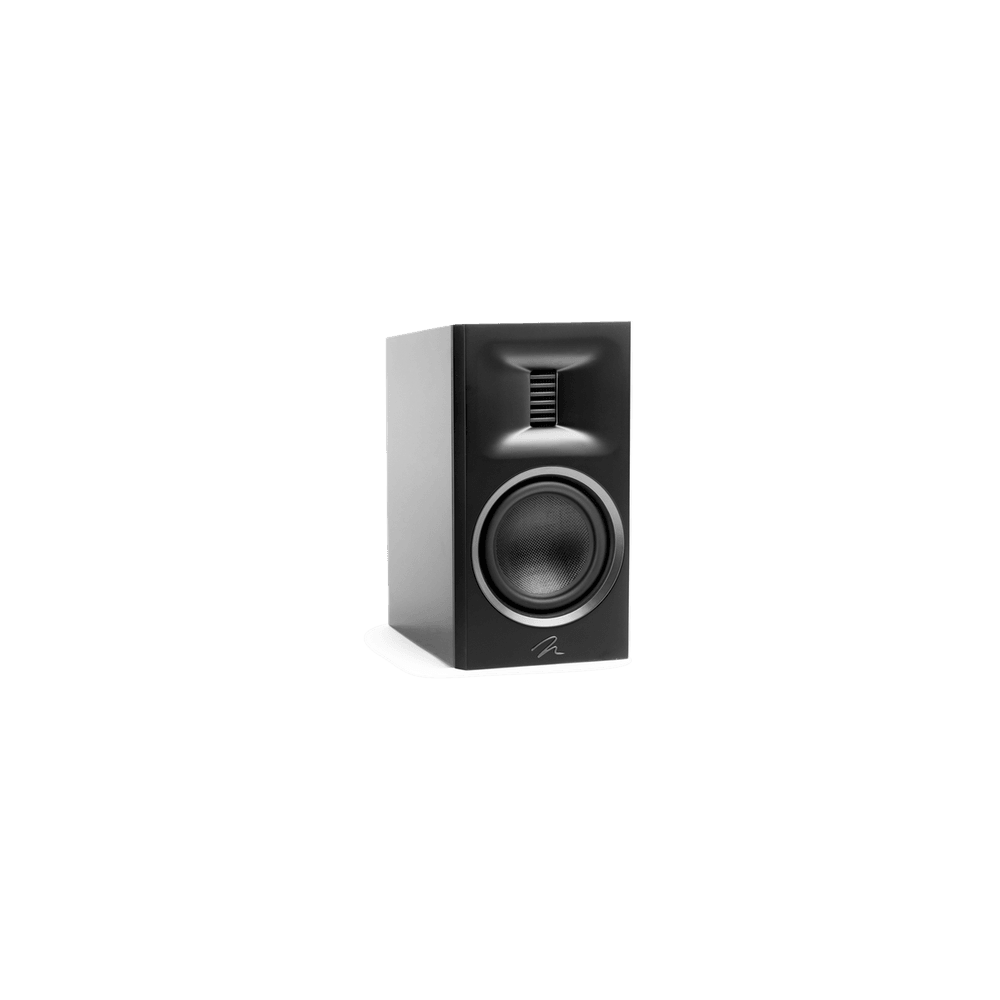

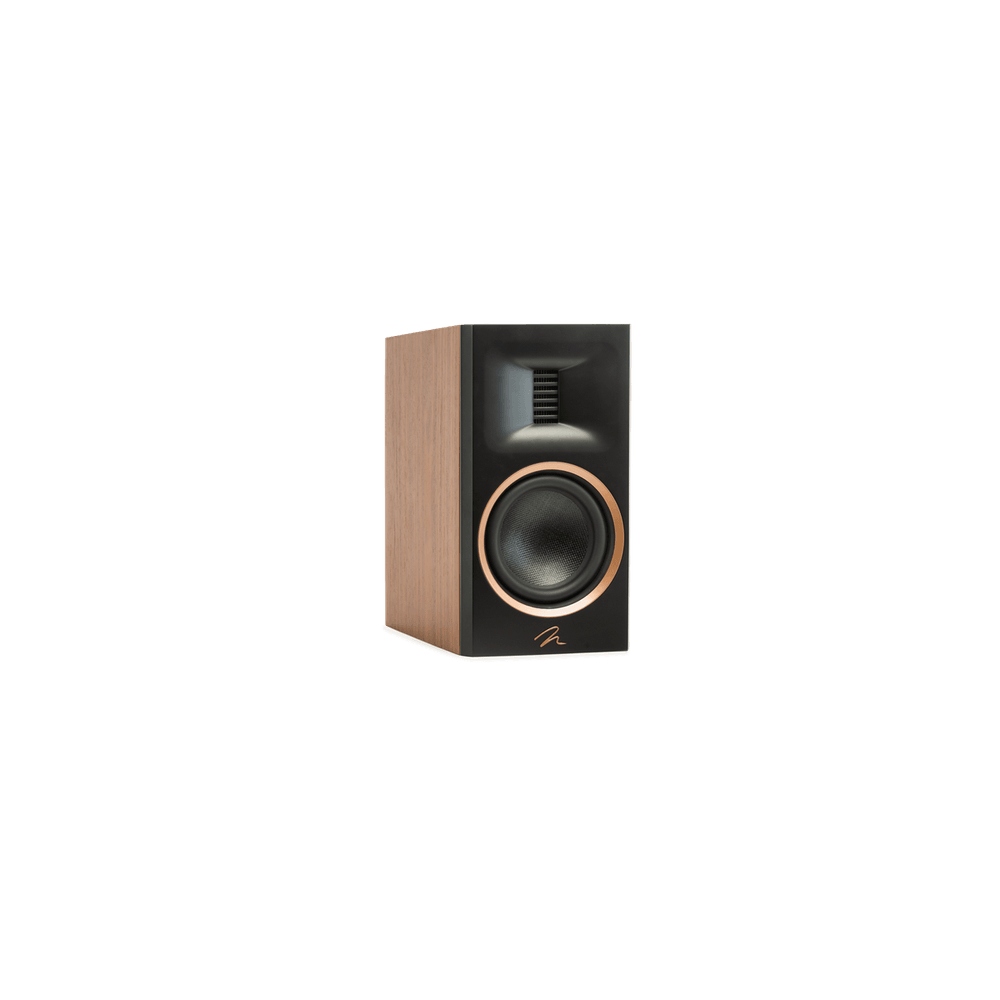

| Finish | Gloss Black, Walnut, and Satin White |
Features
- Motion: Reimagined
- Legendary MartinLogan Sound
- Gen2 Obsidian Folded Motion Tweeter XT
- Folded Motion Waveguide
- Nomex-Reinforced Kevlar Midrange
- Modern Design Featuring
- Stand25
